Preassembled board

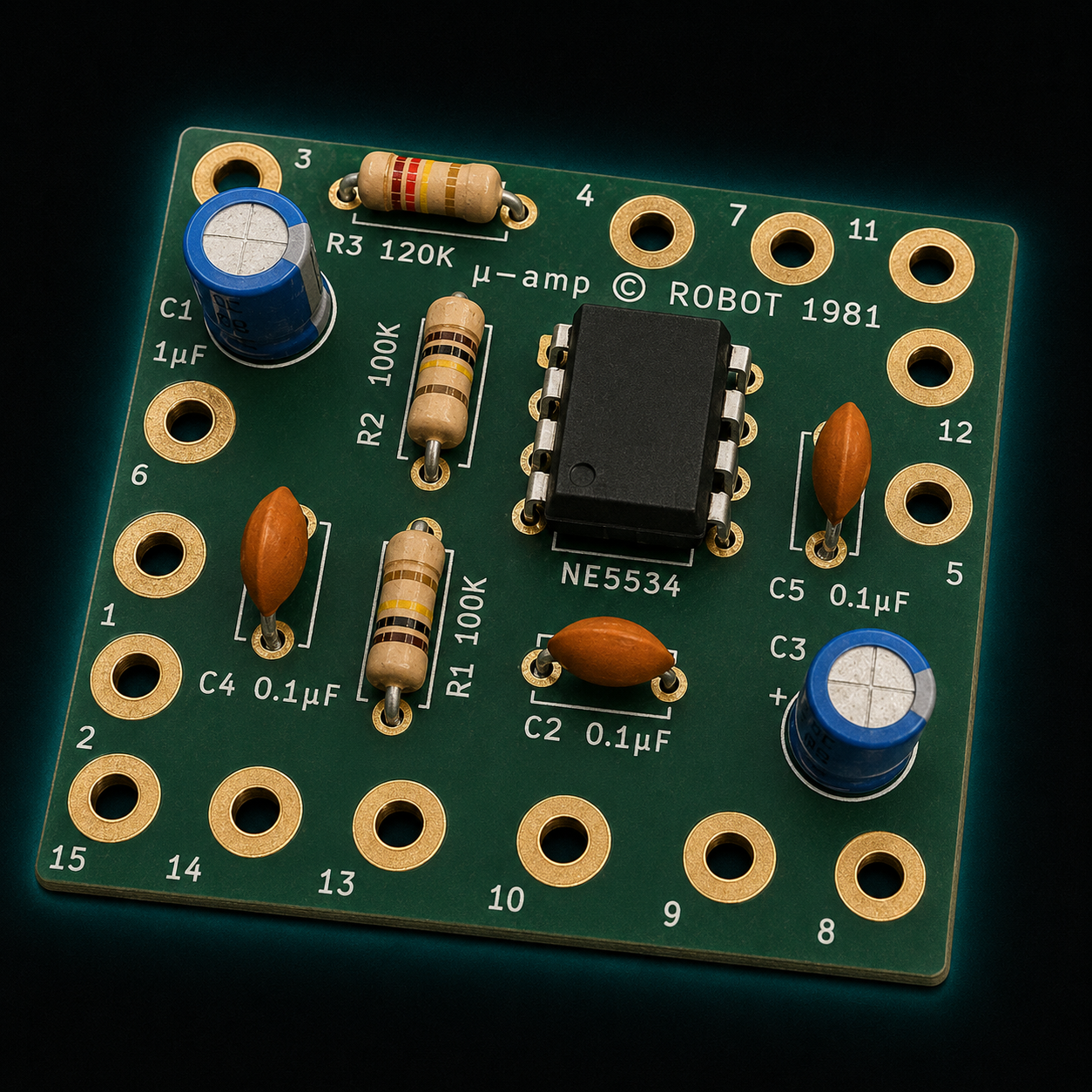

The electronic components are already installed on the PCB.
PREASSEMBLED • READY TO INSTALL
μ-Amp
ROBOT
Compact onboard guitar preamp module.
A small, fully assembled preamplifier board designed to fit inside the instrument and make installation straightforward.
© ROBOT 1981
WHY BUILDERS LIKE IT
Compact size
Designed for onboard installation where space matters.
Easy wiring
Numbered connection pads make the external wiring easy to follow.
Ready for installation
Mount the board, connect the off-board controls and power, then test.
THE μ-AMP
A small preamp with a long history.
Originally identified as ROBOT 1981, the μ-Amp is a compact onboard guitar preamplifier built around the NE5534. The present board keeps the original circuit concept in a clean, installer-friendly PCB format.
The board is supplied preassembled. The guitar pickup, control potentiometer, bypass switch, output jack and 9 V battery are connected off-board.
THE BOARD
Built to be wired, installed and used.

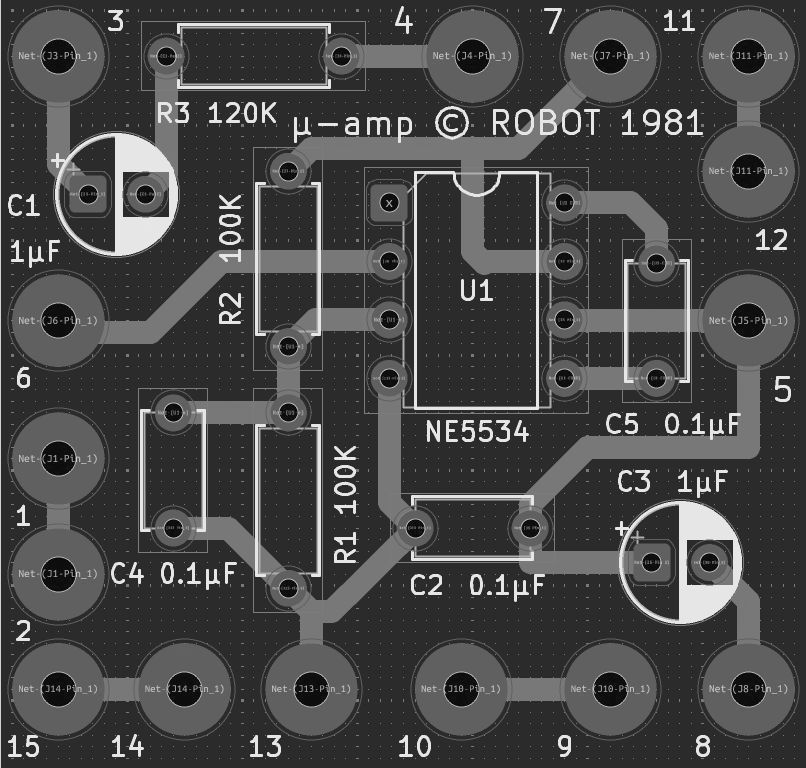

Large numbered pads around the edge of the board provide clear connection points for the off-board parts. The board also includes copper link traces for several paired connections, while allowing direct point-to-point wiring when preferred.
15numbered connection pads
9 Vstandard battery operation
NE5534audio op-amp
INSTALLATION
Simple enough to wire without turning the guitar into a science project.

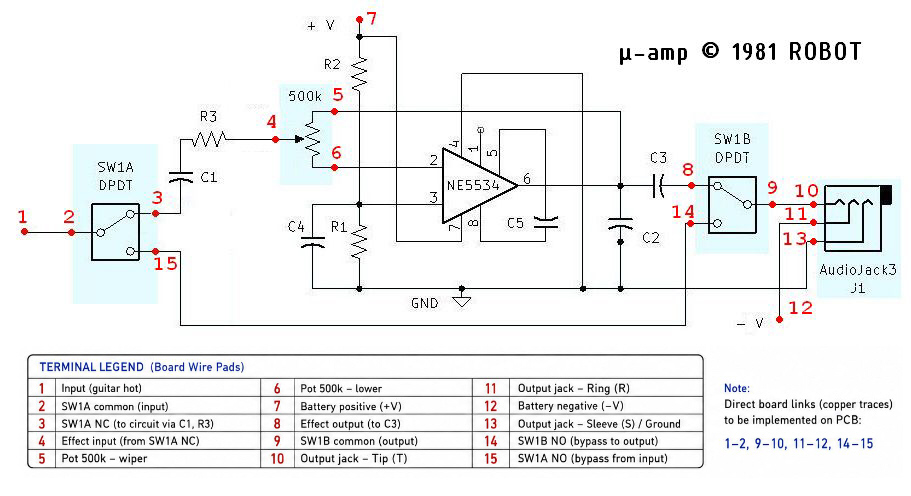

The installation guide identifies every numbered pad, the recommended wire colors, the 500 kΩ control connections, DPDT bypass switch, stereo output jack and 9 V battery wiring.
View product drawing
Detailed installation guide coming to this site.
